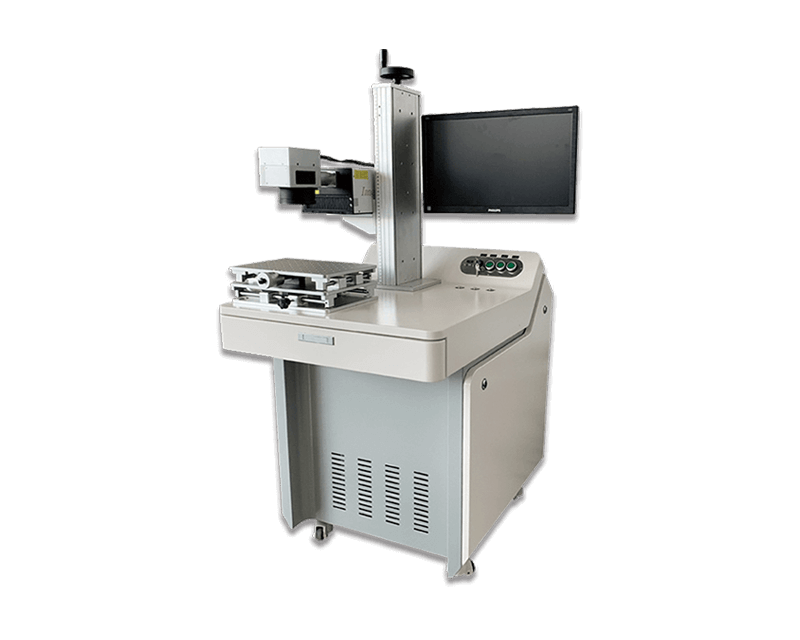

Desktop UV Laser Marking Machine

Serie ultravioleta

Desktop UV Laser Marking Machine

Consultar Ahora
Inicio / Productos / Máquina de marcado láser / Serie ultravioleta / Desktop UV Laser Marking Machine

1.Permanent: The mark will not fade due to environmental factors (touch, acid and reduced gas, high temperature, low temperature,etc.)

2.High precision: The objects engraved by the UV laser marking machine have fine patterns, and the minimum line width can reach 0.01mm.

The marking is clear, durable and beautiful.Can print two-dimensional bar codes requiring more precision and higher definition.

3.Small thermal effect: The wavelength of the ultraviolet laser marking machine is 355nm, which is a cold light source, will not damage the surface of the material, is smokeless,

and has no pollution, and has a particularly good effect for marking plastic materials.The processed material has smooth edges and surface.

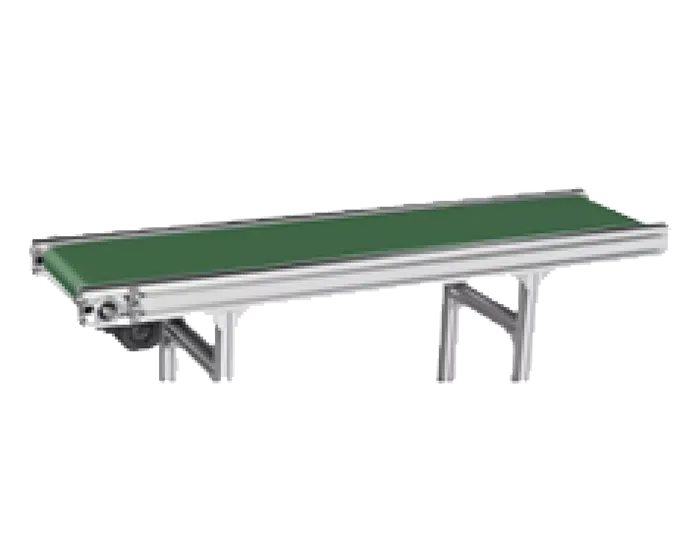

1500mm*200mm

1500mm*200mm

We can customize design the length of conveyor belt, such as 800mm, 1000mm, 1200mm, 1500mm

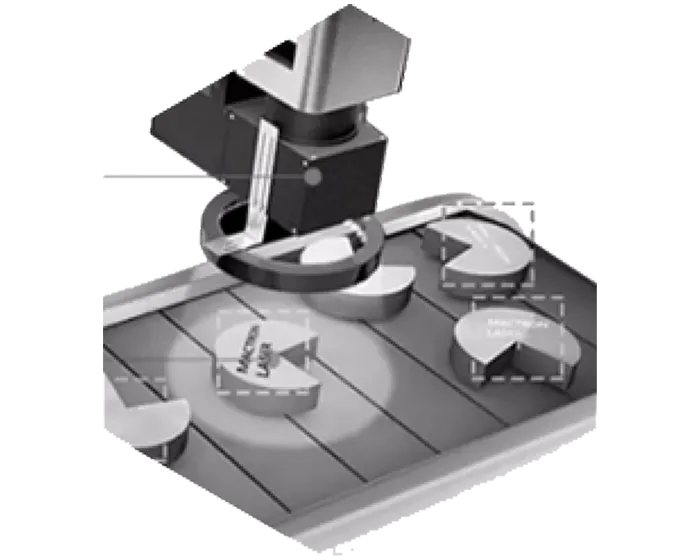

CCD camera positioning

CCD camera positioning

Automatically located products

Precision marking.

Can mark multiple products at the same time

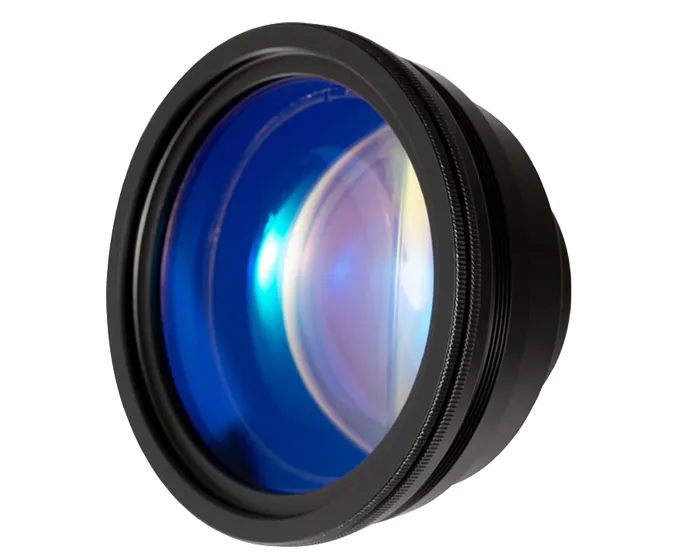

F-theta-lens

F-theta-lens

High quality wavelength tech optical lens, we have optional size:75*75mm, 110*110mm, 150*150mm, 175*175mm, 200*200mm, 250*250mm, 300*300mm etc(optional, but prices vary)you can choosse one suitable size according to your needs.

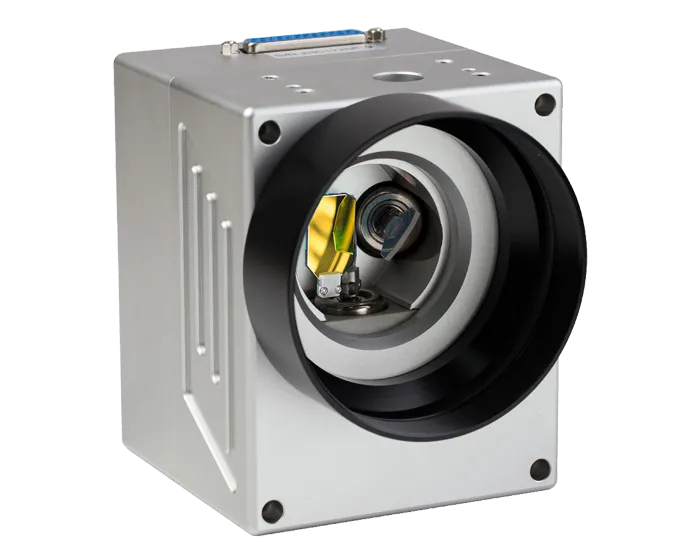

Best quality digital Galvotech scan head

Best quality digital Galvotech scan head

Come with newest digital type scan head with double red dots build in more easy to get focus; Failed warning light ensure machine running correctly.

UV Laser Source:JPT/HuaRay/Inngu 3W 5W 10W

UV Laser Source:JPT/HuaRay/Inngu 3W 5W 10W

With high beam qualitythe ultra-small focusing spot of 355nm ultraviolet light and processing heat affected zone

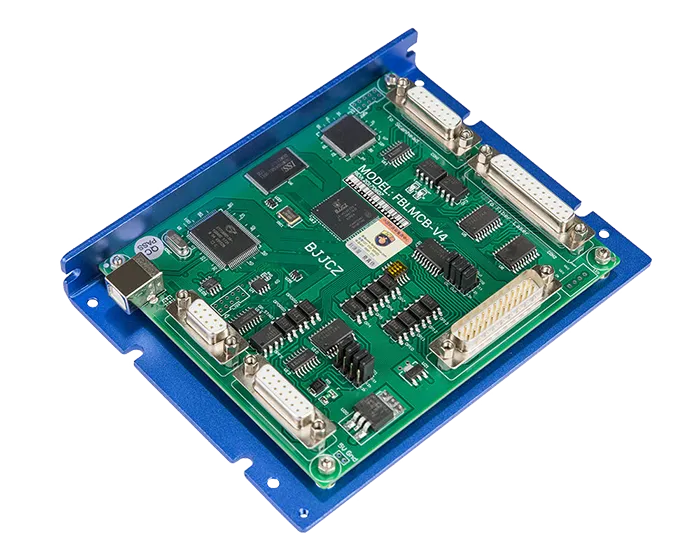

Genuine BJJCZ card

Genuine BJJCZ card

Software: EZCAD, control system WIN7, WIN8, WIN10 are ok

Rotary Device

Rotary Device

Widely used for cylindrical objects, arc-shaped markings, easy to operate. With a rotating card slot on the headeasy installflexible adjustment.

Parámetros técnicos

Laser source power3W/5W/10W
Laser wavelength355nm
Laser pulse width3W<[email protected], 5W<[email protected], 10W<[email protected]
Laser frequency20khz~150khz
Laser beam quality<1.2
Marking area100x100mm, 150x150mm, 175X175mm, 200x200mm
Marking character0.1 x 0.1 mm
Support computerXP, WIN7, WIN8, WIN10
Control softwareEZCAD
Control systemBJJCZ
Unit power≤900W
Power supplyAC110V 60HZ or AC220V 50HZ
Cooling modeAir cooling
Room temperature-15 ~ 50 ℃
Gross weight60kgs
Packing size78x40x80cm

Industria de aplicaciones

UV laser marking machine has been used in the high-end market of ultra-fine processing, marking the surface of iPhonecosmetics, medicine, food packaging; LCD liquid crystal glass, glass surface metal surface coating, plastic buttons, electronic components, gifts, communication equipment, Building materials and other fields.

Desktop UV Laser Marking Machine

Desktop UV Laser Marking Machine

Desktop UV Laser Marking Machine

Etiquetas: Laser Marking Machine
