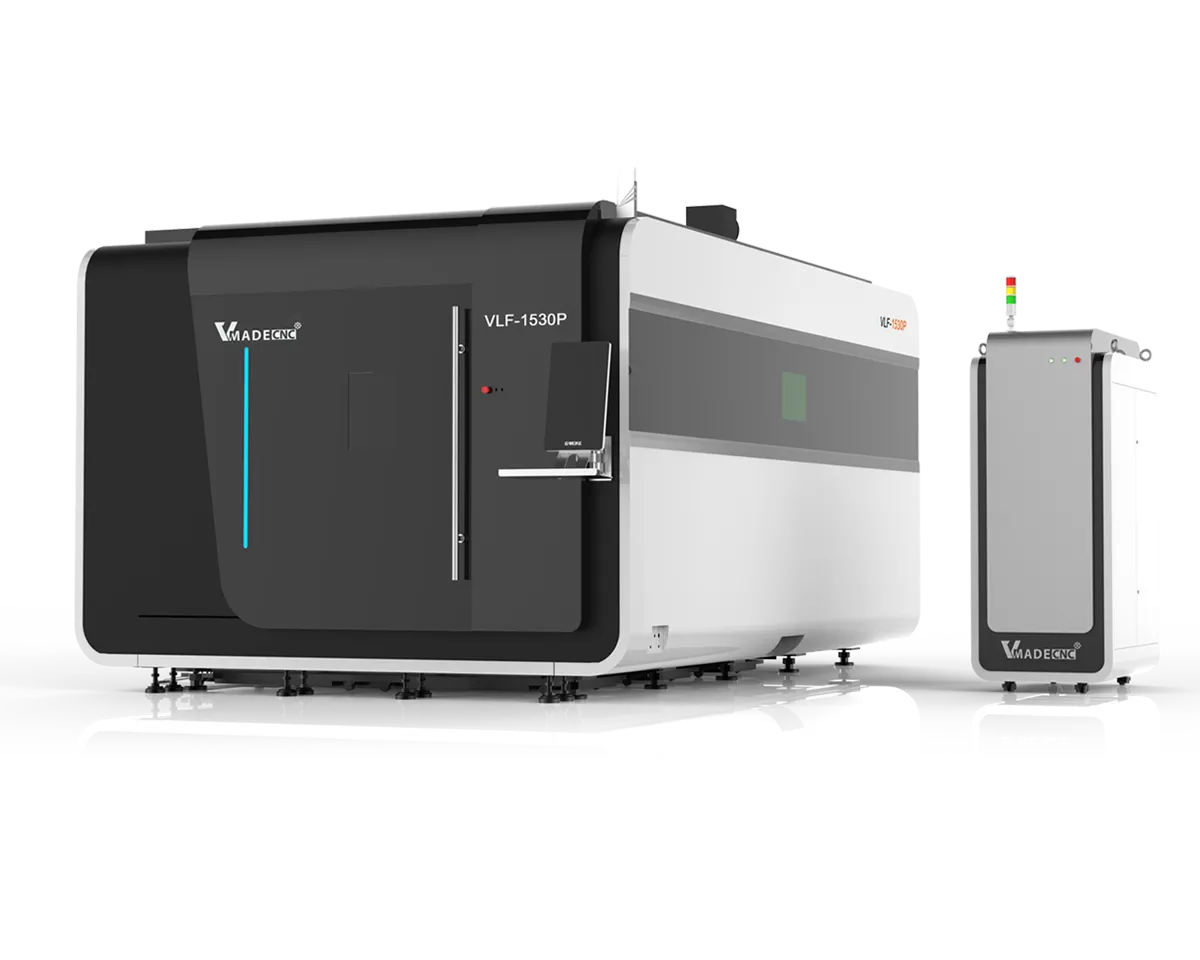

VLF1530P fiber laser cutting machine as one classic model, widely used in many common areas of our life, Used for cutting a variety of metal plates,

mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.

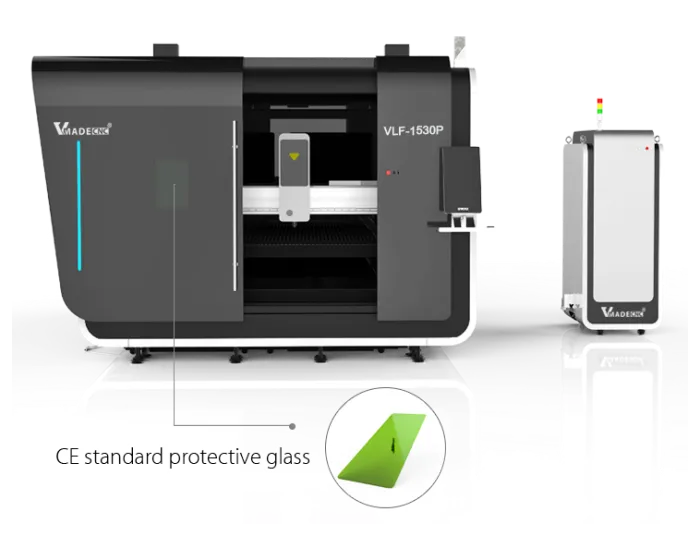

Safety and No Pollution

Safety and No Pollution

-With a fully enclosed design;

-The observation window adopts an European CE Standard laser protective glass;

-The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly;

-The weight of machine is 7500kg.

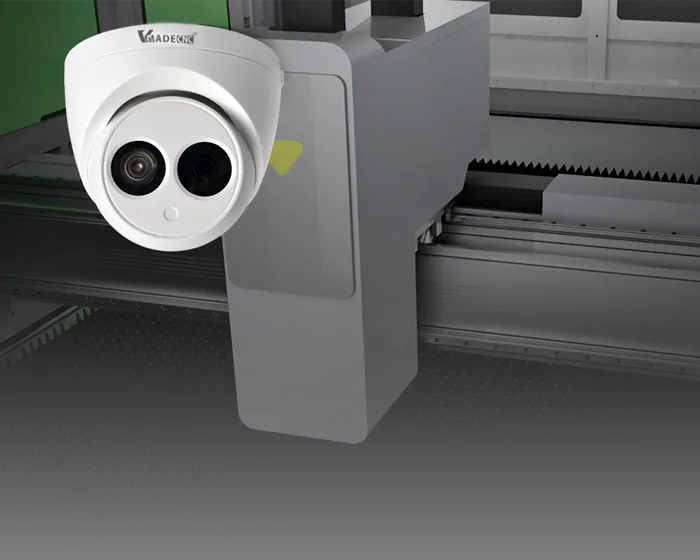

Night vision system, day and night survellance

Night vision system, day and night survellance

Real-time observe the machine running through the panel

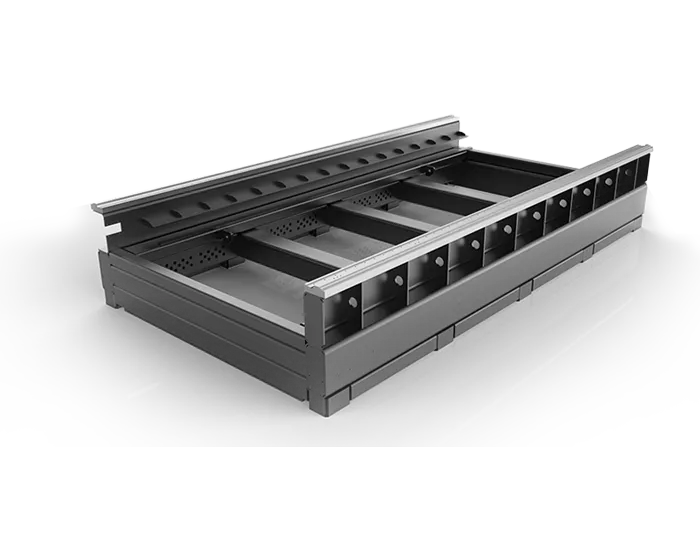

The Segmented Rectangular Tube Welded Bed

The Segmented Rectangular Tube Welded Bed

-The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.

-High strength, stability, tensile strength, ensuring 20 years of use without distortion;

-Thickness of rectangular pipe wall is 10mm and weights 4500 kg.

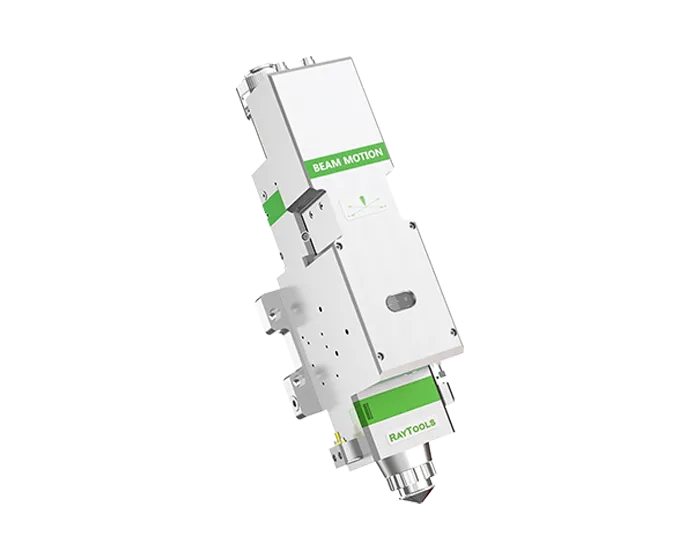

Without manual operation, it can focus automatically

Without manual operation, it can focus automatically

Without manual focusing

The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.

Bigger adjustment range

Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.

Long service life

Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

Parámetros técnicos

Machine modelVLF1530P
Laser power1000W 2000W 3000W 4000W 6000W 8000W(Optional)
Dimensions5425*3150*2530mm
Working area3000mm x 1500mm
Repeat positioning accuracy±0.02mm
Maximum speed120m/min
Max. acceleration1G
Voltage and frequency380V 50Hz/60HZ

Industria de aplicaciones

VLF1530P fiber laser cutting machine can carry up to 8000W laser power, so cutting some thick plate, it is a very good choice. For example, agricultural machinery, textile machinery, food machinery and construction machinery and other large machinery and equipment manufacturing, usually use high power fiber laser cutting machine for processing.

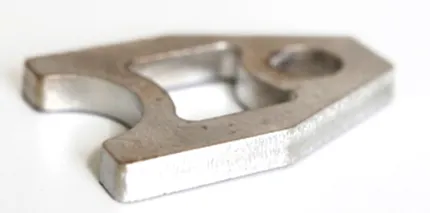

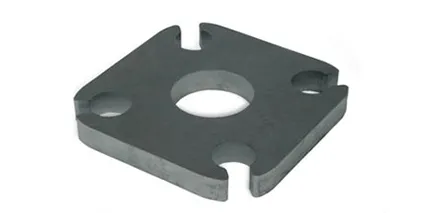

Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum-plating zinc plate, copper, and other metals.

Whole Cover Fiber Laser Cutting Machine

Whole Cover Fiber Laser Cutting Machine

Whole Cover Fiber Laser Cutting Machine

Etiquetas: Fully Enclosed Laser Cutting Machine
