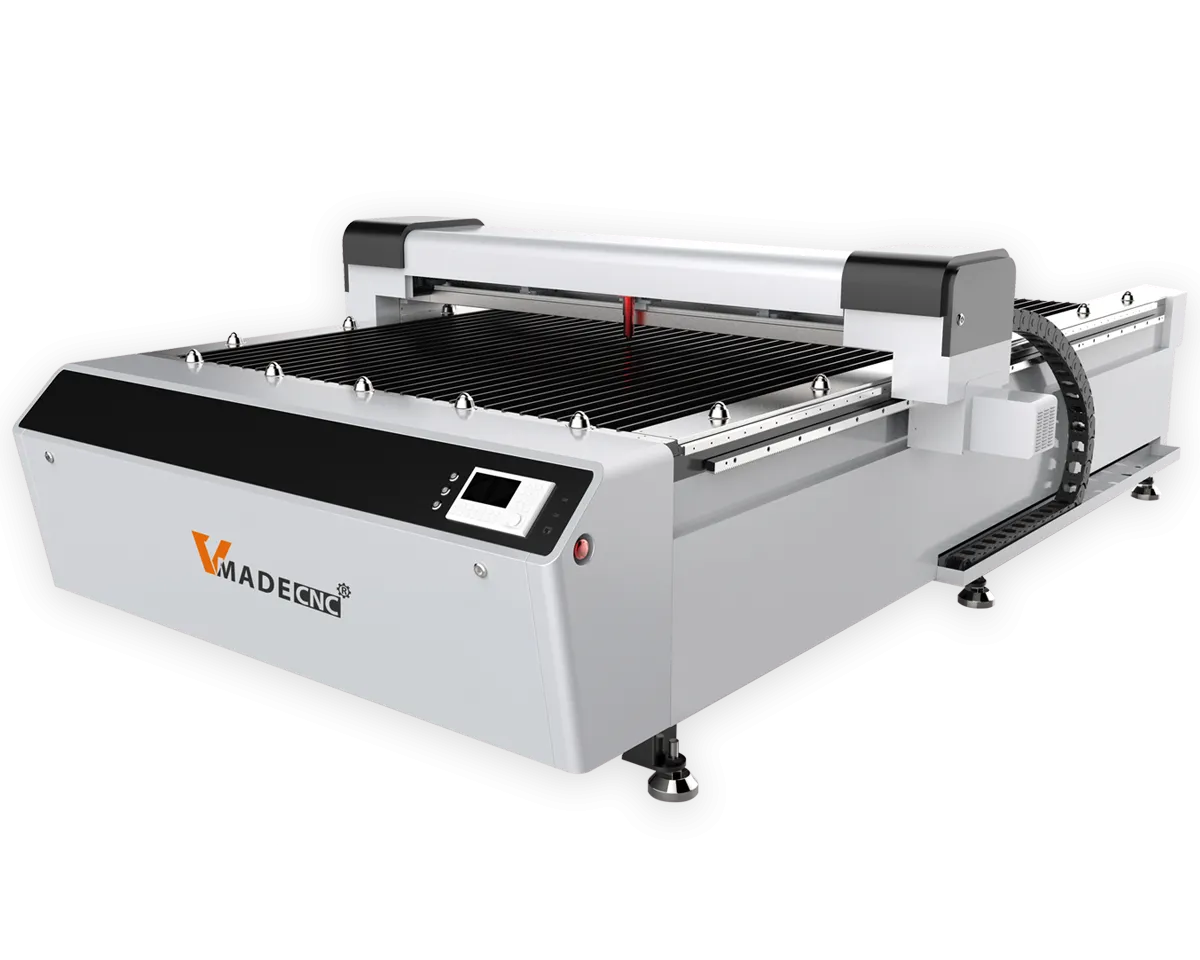

CO2 Laser Cutting Machine

D Series

CO2 Laser Cutting Machine

Consultar Ahora
Inicio / Productos / Máquina de corte por láser de CO2 / Serie D / CO2 Laser Cutting Machine

>> Open type working table achieves large format engraving and cutting area

>> dust helmet keeps linear guide rail clean and smooth, which extends machine lifespan

>> Guide rail grooves is one piece type and made by milling machine.Light patch won't be changed after long time using, which makes the whole machine more stable and cutting more precise

>> whole machine with stable mechanical design, ensure high stability, high speed and high prescison

>>  honeycomb table and with thicker Znfe focus lens, more durable and smooth. Laser pathsystem use Mo mirror imported lens , which keeps the same power output at any site on working table

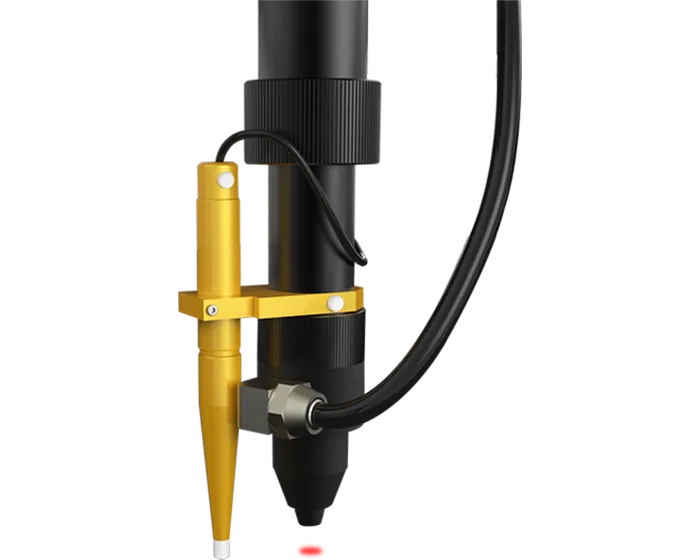

Automatic Focusing

Automatic Focusing

Auto focusing makes the laser head focus easily and quickly. Do not need to adjust the focal length by hand, saving much time and has higher accuracy.

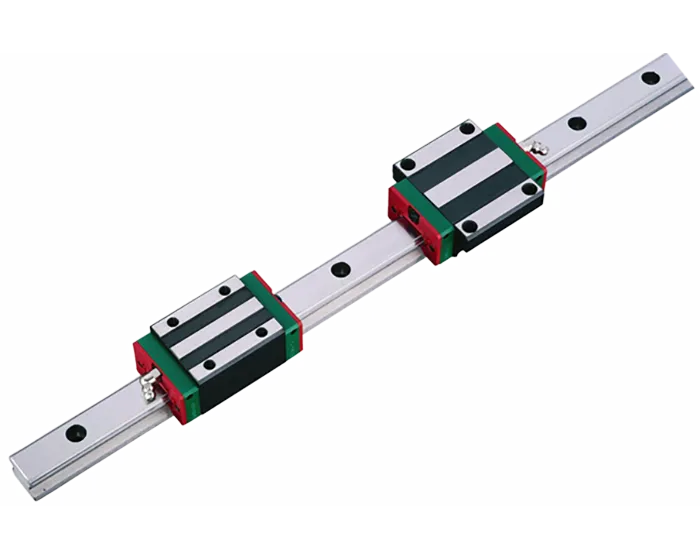

Taiwan Hiwin Linear Guide Rail

Taiwan Hiwin Linear Guide Rail

Adopted Taiwan Hiwin linear guide rail, high positioning accuracy, scroll guide, reduce wear to maintain accuracy for a longer time.

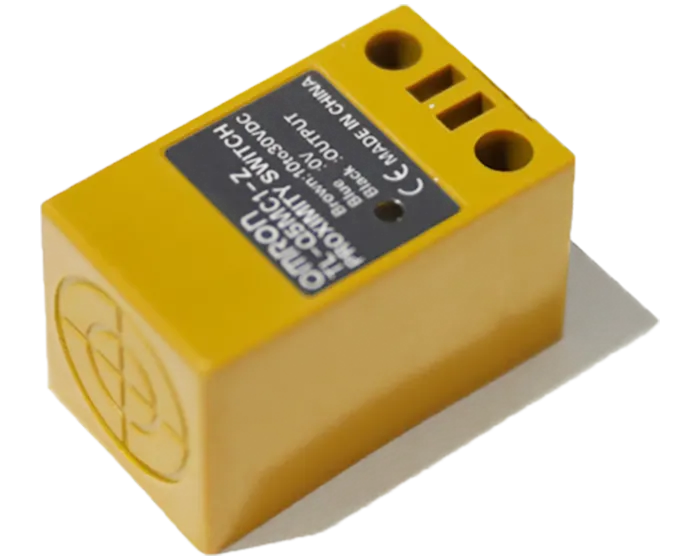

Japan OMRON

Japan OMRON

Electronic Component

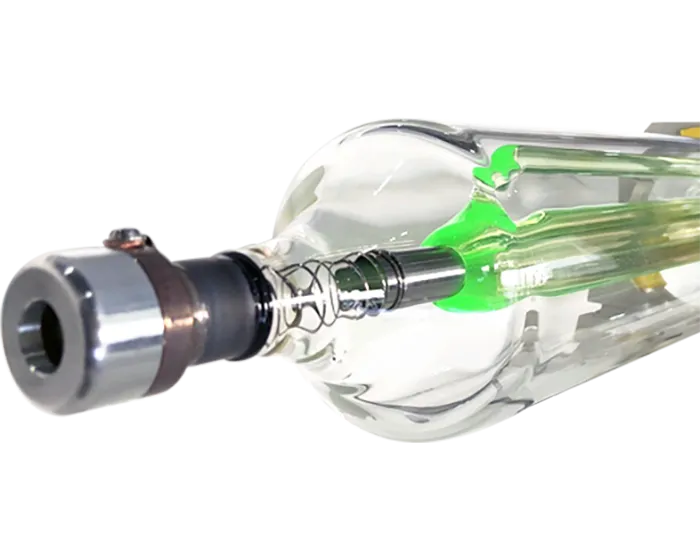

RECI Laser Tube

RECI Laser Tube

Higher laser output power density, concentrated light beam, uniformly light spot, high working efficiency, high cutting speed. The laser tube adopts the special manufacturing technique, the laser beam is sharpen after focusing, the mark line is narrow, the scale is deep, the resolution is high, the picture character is clear.

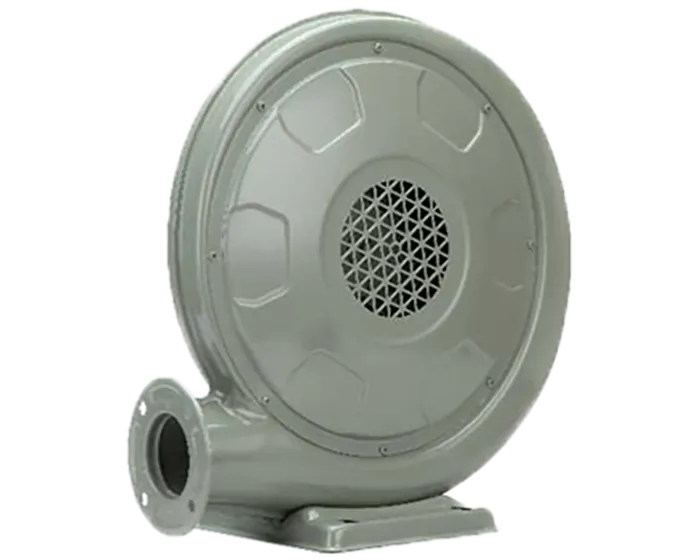

One Button Starting Fan

One Button Starting Fan

The fan can be started by one button. You can control the fan independently.

Parámetros técnicos

Laser - TypeSealed CO2 laser tube
Laser Power60W 80W 100W 130W 150W (Optional)
Cutting Area1300mm x2500mm
Whole Machine Size3000* 1600* 990mm
Cutting Speed0 -24000mm/min
Resetting Positioning Accuracy±0.1mm
Working VoltageAC 110-220V ±10%,50 60Hz
Gross Power<1,500W
Operating Temperature0-45℃
Operating Humidity5-95%
Minimum Shaping CharacterEnglish 1x1mm
Graphic Format SupportedBMP, PLT, DST, DXP, and AI
Driving Systemstepper
Cooling ModeWater-cooling and protection system
Auxiliary EquipmentsExhaust-fans, air-exhaust pipe
Controlling SoftwareDSP control system
Compatible SoftwareCorelDraw AutoCAD Photoshop

Industria de aplicaciones

The machine can satisfy the demands of cutting and engraving large quantity of clothing fabrics, leather, wood, acrylic, paper and other industries.
