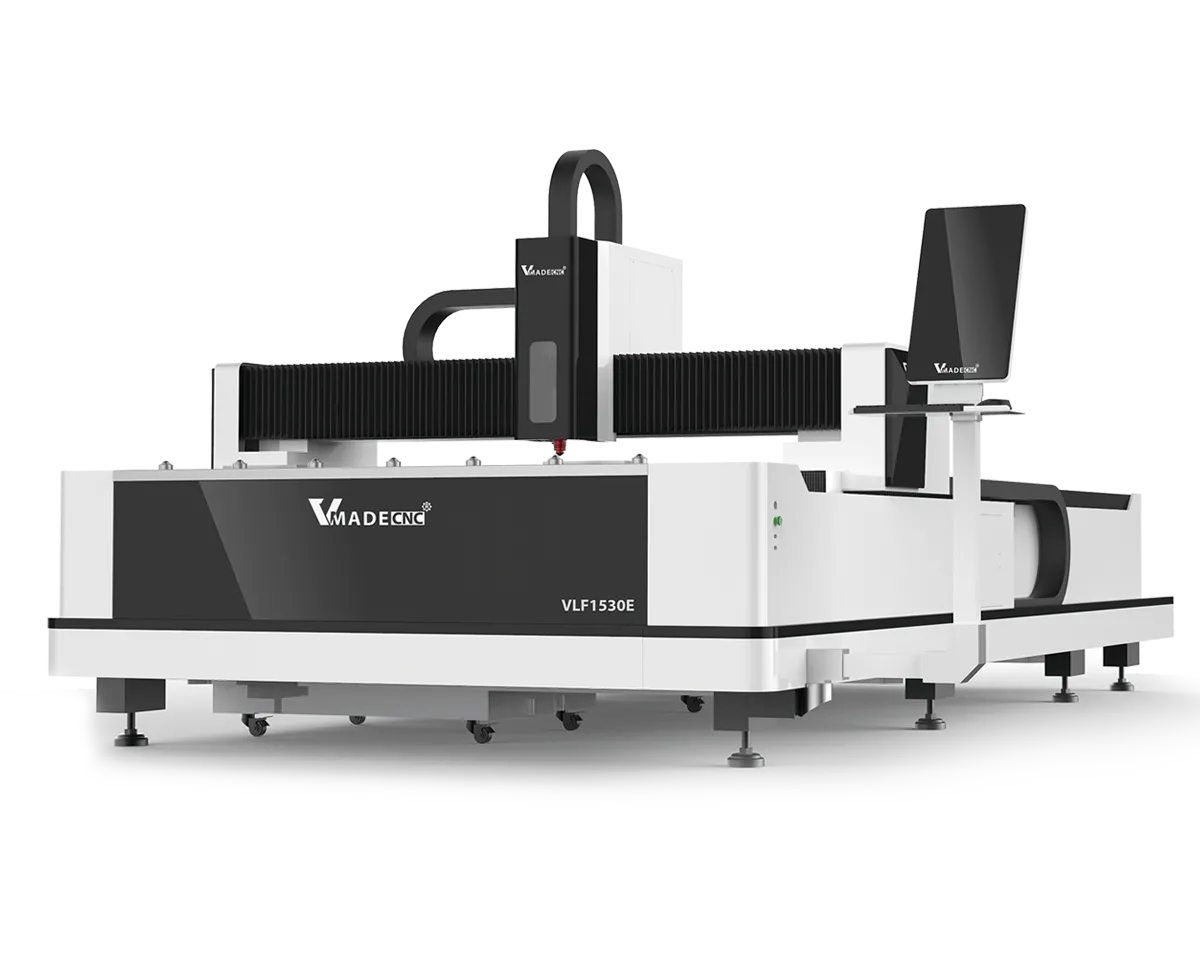

VLF1530E fiber laser cutting machine as one classic model, widely used in many common areas of our life, Used for cutting a variety of metal plates,

mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.


The Fourth Generation Aviation Aluminum Gantry

The Fourth Generation Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

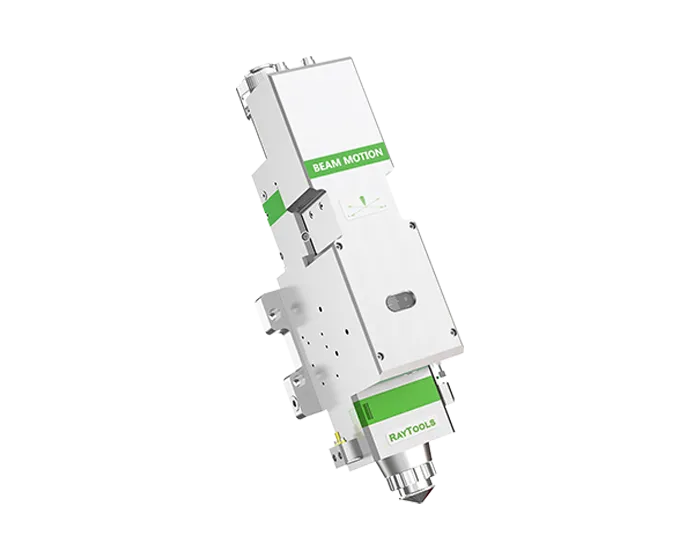

Without manual operation, it can focus automatically

Without manual operation, it can focus automatically

Without manual focusing

The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.

Bigger adjustment range

Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.

Long service life

Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

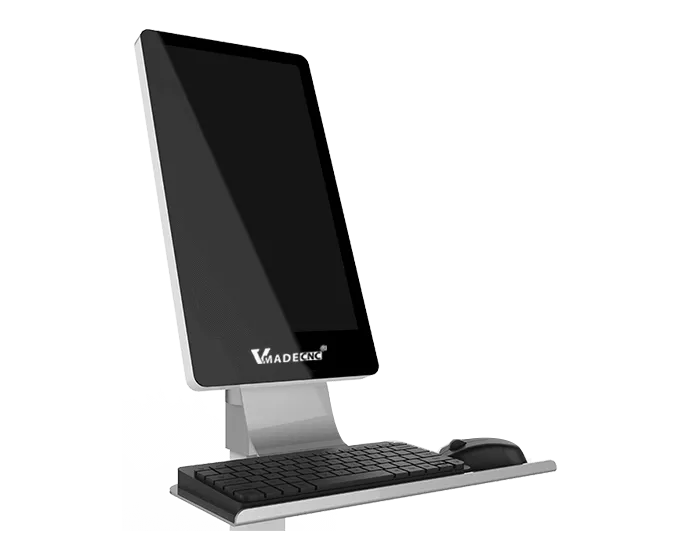

IPAD Designing Screen

IPAD Designing Screen

Ipad design screen, has a vertical screen display, different from the traditional horizontal screen display with good response speed, higher contrast, wider view, low power consumption as well as high resolution.

In addition, it possesses high brightness levels and lower reflectivity as well as solid glass panel sturdiness and durability.

Transmission and Precision

Transmission and Precision

Vmade fiber laser cutting machine is equipped with Delta servo motor, French Motoreducer and Taiwan YYC rack. The repeat positioning accuracy of the machine tool can be 0.02mm. The working life is more than 10 years.

Parámetros técnicos

Machine modelLF3015E
Laser power500W 700W 750W 1000W 1500W
Dimensions4600*2450*1700mm
Working area3000mm x 1500mm
Repeat positioning accuracy±0.02mm
Maximum speed60m/min
Voltage and frequency220V/380V 50Hz/60Hz

Industria de aplicaciones

VLF3015E fiber laser cutting machine is good at processing on common metal items in daily life such as advertising metal letter, kitchenware, environmental protection equipment. Laser cutting machines are widely used in electronics, electrical, mechanical hardware, new energy lithium, packaging, solar, LED, automotive and other industries.
Stainless steel, carbon steel, alloy steel, copper, brass, silicon steel, galvanized steel sheet, nickel titanium alloy, inconel, titanium alloy, etc.

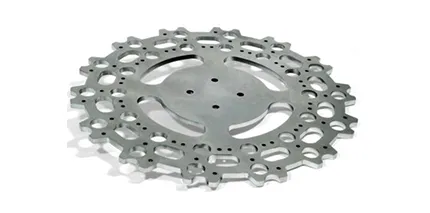

Fiber Laser Cutting Machine

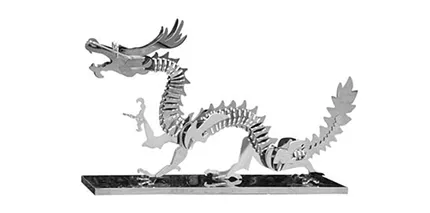

Fiber Laser Cutting Machine

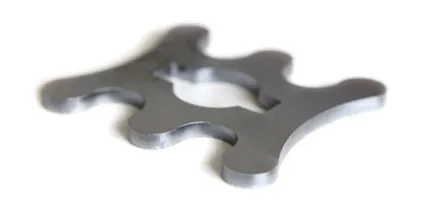

Fiber Laser Cutting Machine
