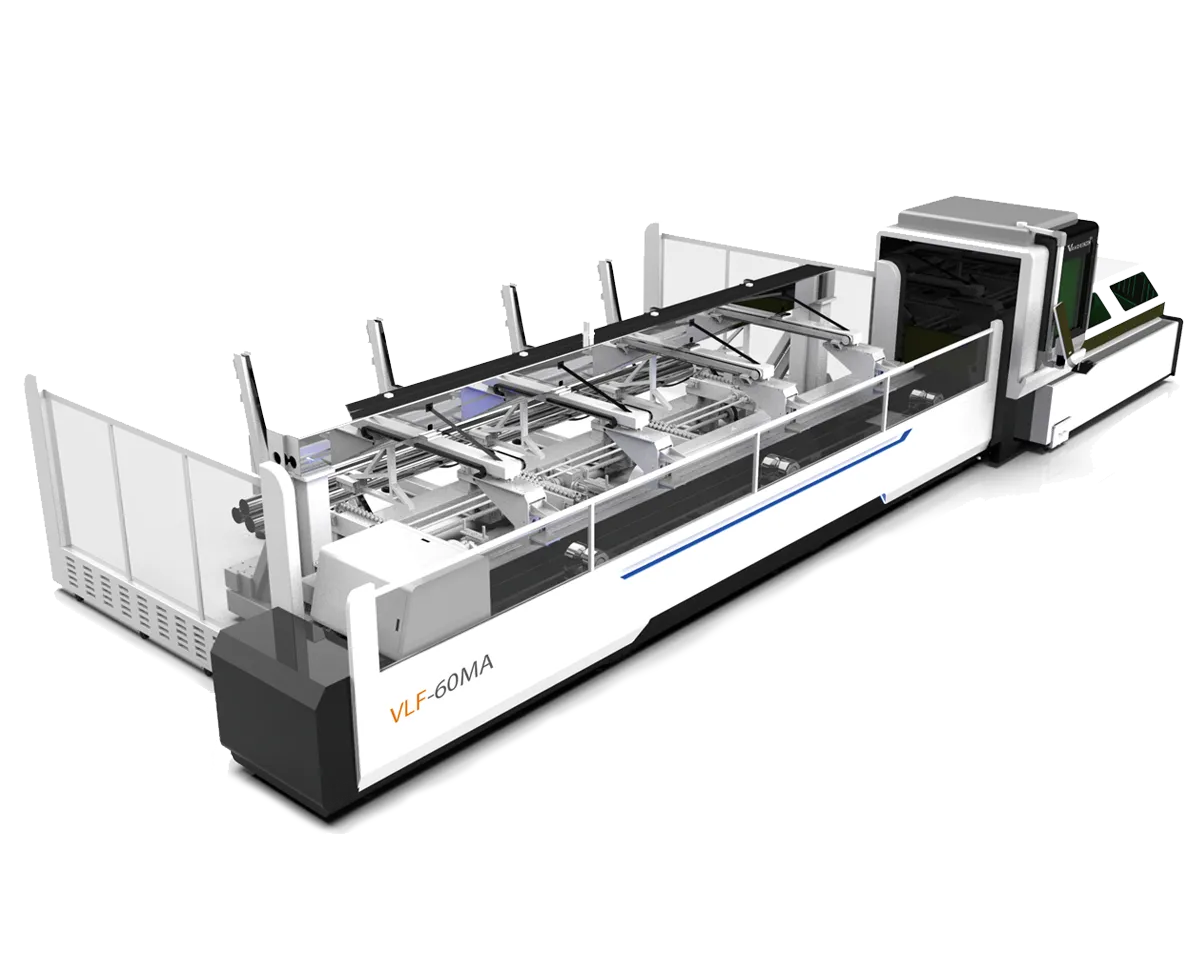

Auto Loading and Unloading Fiber Laser Tube Cutting Machine

60MA Series

Auto Loading and Unloading Fiber Laser Tube Cutting Machine

Consultar Ahora
Inicio / Productos / Máquina de corte por láser de placa y tubo / Serie 60MA / Auto Loading and Unloading Fiber Laser Tube Cutting Machine

1.Adopt heavy duty structure,CNC machinery center processing and forming,high strength and good stability;
2.More stronger cast iron stand to keep the machine working more stable;
3.Configure with high accuracy THK linear rail,high accuracy helical gear rack transmitting,more stability,higher precision;
4.Restart from power off,auto feeding,restoration,continue processing at break point.Support 9 coordinate setting,user friendly design;

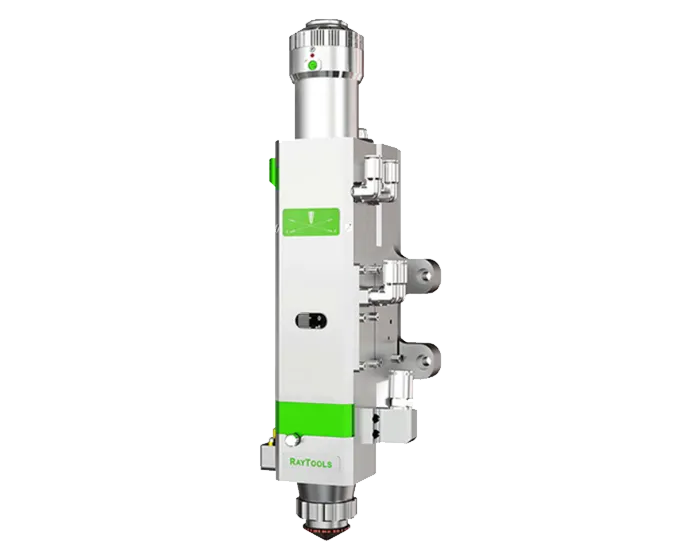

Auto Focus Laser Cutting Head

Auto Focus Laser Cutting Head

-Without Manual Focusing

The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.

-Bigger Adjustment Range

Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.

-Long Service Life

Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

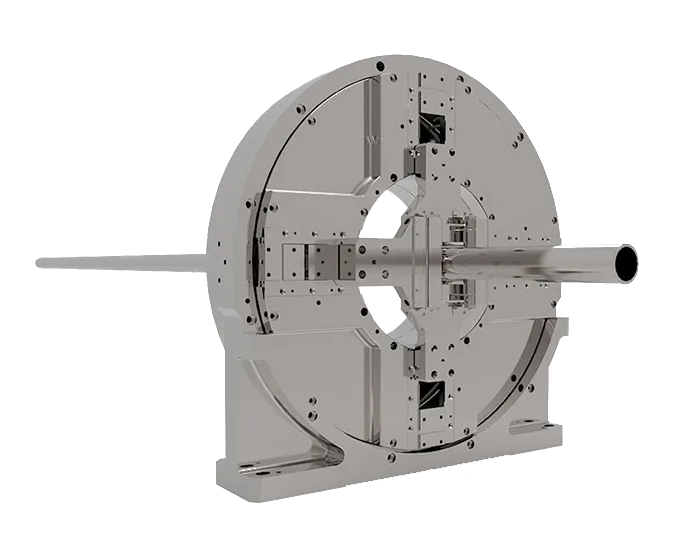

Clamp Design

Clamp Design

It adopts an pneumatic clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-300mm.

Fractional Automatic Support Installation

Fractional Automatic Support Installation

It employs intelligent tube support design, which can solve the deformationproblems in the process of long tube cutting.

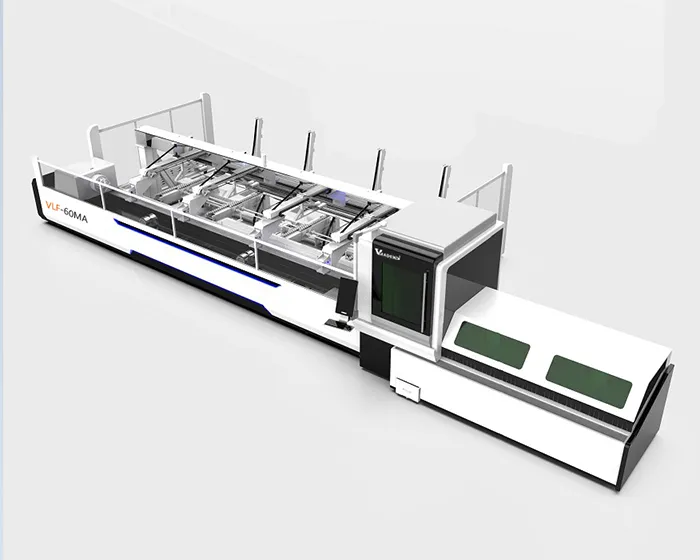

Full-automatic feeding and unloading material device

Full-automatic feeding and unloading material device

-Automatic Feeding

Realize the intelligent material separation, feeding and seamless docking with the fiber laser cutting machine after the whole bundles of tubes are placed in the feeding device, and ensure that only one tube is delivered to the conveying arm each time.

-Automatic Unloading

The finished product is automatically dropped to the storage bin, double support-bearing auxiliary support overlong tubes.

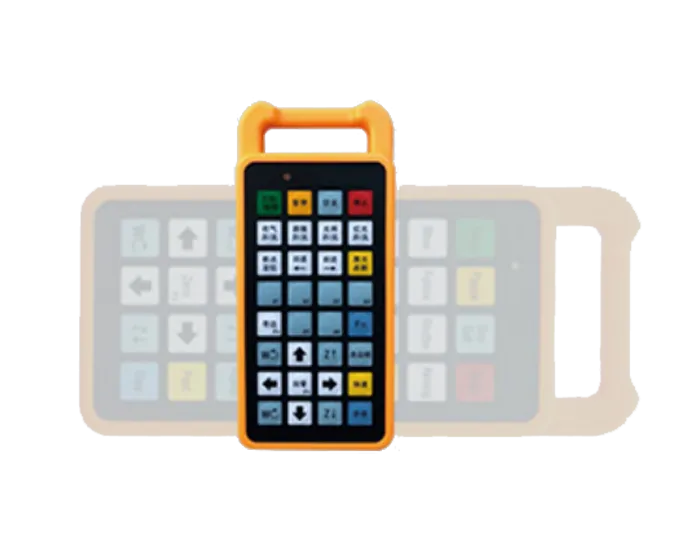

Wireless Controller

Wireless Controller

It employs a wireless controller, with free control clamp pressure for easy control and operation, which can reduce pipe deformation.

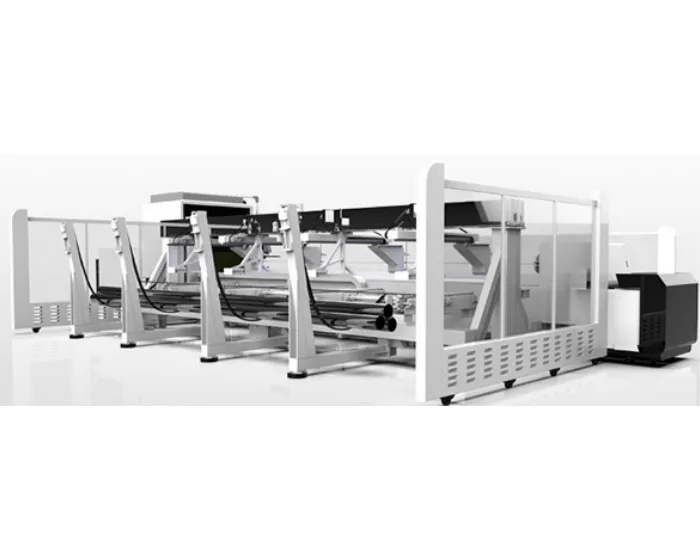

Automatic Stroke Protection

Automatic Stroke Protection

Detect whole process of cutting head working, quickly feedback the risk and stop it. Double protection with fixed limit to improve equipment and personal safety and reduce risk

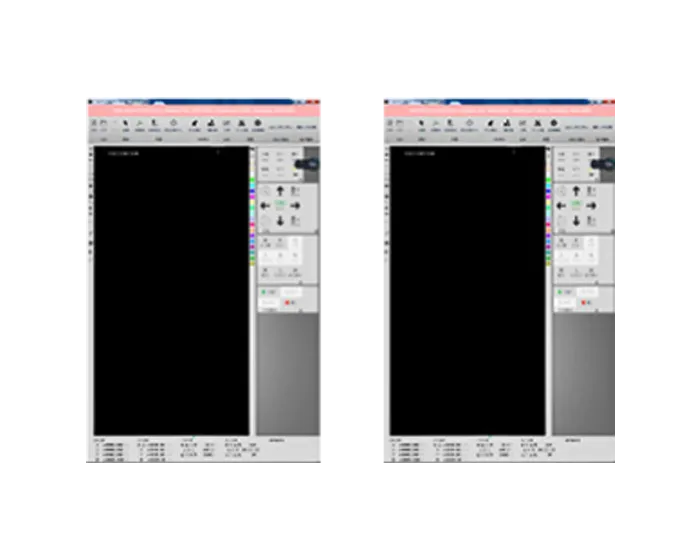

Intelligent Alarm System

Intelligent Alarm System

It can detect anomalies in advance, reduce hidden dangers, and double the effect of abnormal detection of equipment.

Parámetros técnicos

Machine model

VLF60MA

Laser power

1000W/2000W/3000W/4000W/6000W/8000W( Optional)

Dimensions

12695*5345*2627mm

Machining range

Hold diameter: Φ15mm-Φ300mm

Repeated positioning accuracy

±0.02mm

Specified voltage and frequency

380V 50Hz/60Hz

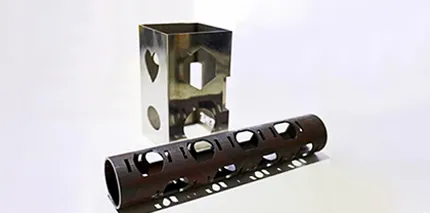

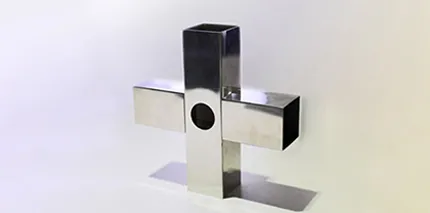

Industria de aplicaciones

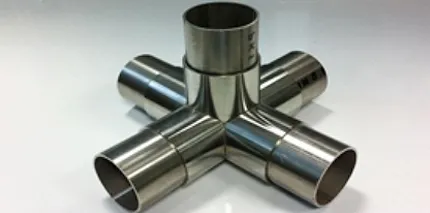

Take the oil industry for example, the main route of oil transport is the pipeline, and because of the characteristics of the oil itself, leading to the high quality requirements of the pipeline. While fiber laser cutting machine can achieve the pipes multi-angle precision processing to fulfil the oil transportation requirement. Professional tube fiber laser cutting machine—LF60M is used for cutting square tube, rectangular tube, oval tube, waist type tube, hexagonal tube; square tube Φ20 * 20- Φ150 *150mm, round tube Φ20-Φ 210mm wall thickness of 0.5-10mm carbon steel tube, 0.5-10mm stainless steel tube.

Auto Loading and Unloading Fiber Laser Tube Cutting Machine

Auto Loading and Unloading Fiber Laser Tube Cutting Machine

Auto Loading and Unloading Fiber Laser Tube Cutting Machine
