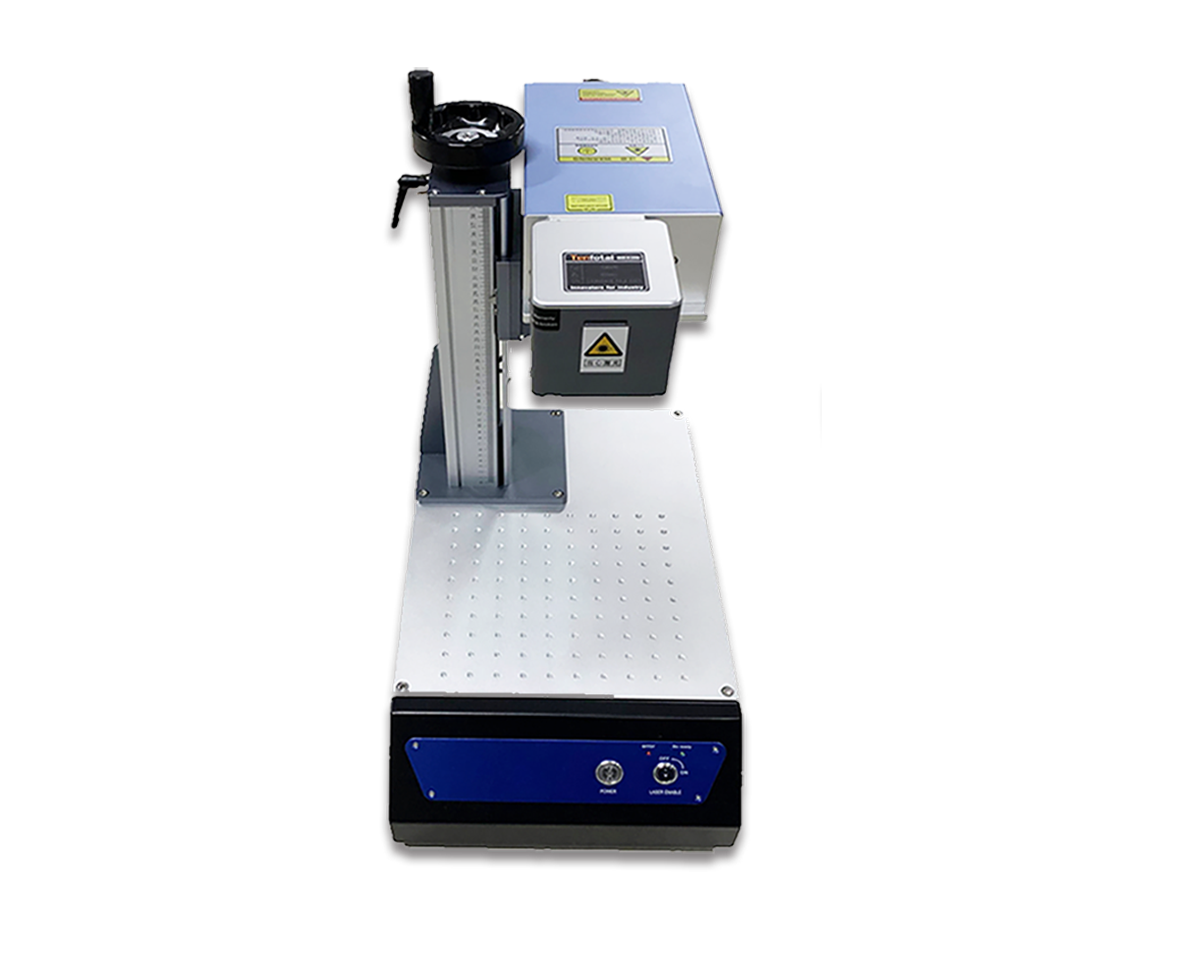

MINI UV Laser Marking Machine

Serie ultravioleta

MINI UV Laser Marking Machine

Consultar Ahora
Inicio / Productos / Máquina de marcado láser / Serie ultravioleta / MINI UV Laser Marking Machine

1.High reliability,long continuous operation time,clear and complete printing.

2.Supported by rich software.enable to collect and manufacture various labels,non-contact processing.

3.Ensure original precision of the surface of work piece to the max limit.

4.Suitable for engraving on various materials.long time preserve.simple installation and convenient.

5.The optical system is fully sealed,it can prevent the dust entering laser body and reduce the equipment failure rate.

CCD camera positioning

CCD camera positioning

Automatically located products

Precision marking.

Can mark multiple products at the same time

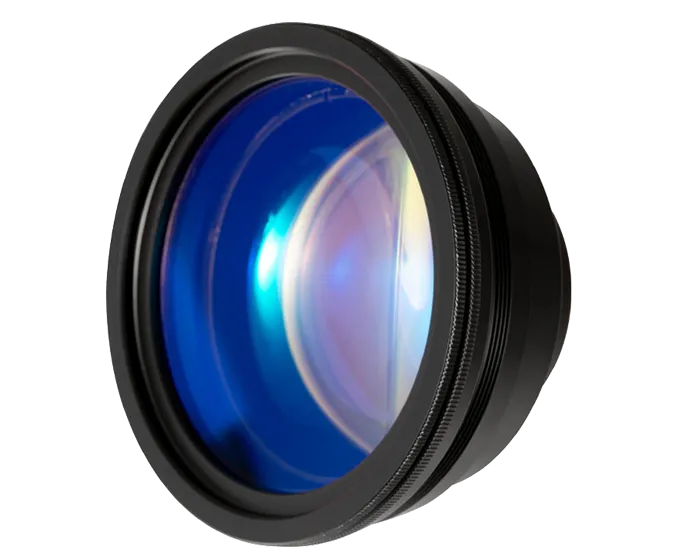

F-theta-lens

F-theta-lens

High quality wavelength tech optical lens, we have optional size:75*75mm, 110*110mm, 150*150mm, 175*175mm, 200*200mm, 250*250mm, 300*300mm etc(optional, but prices vary)you can choosse one suitable size according to your needs.

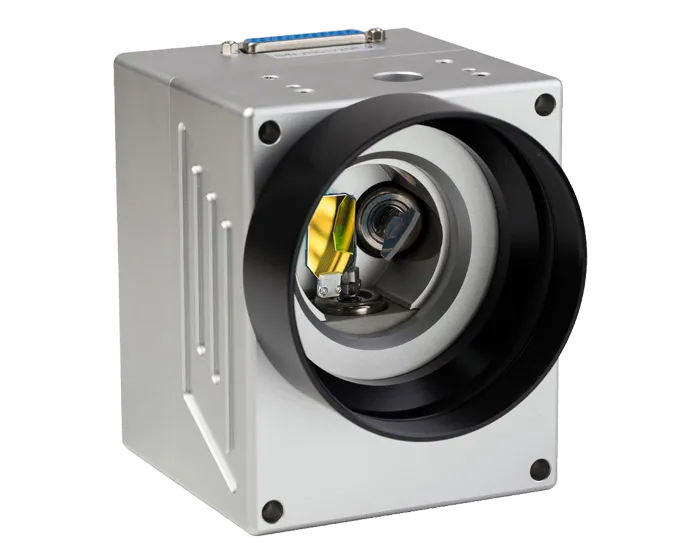

Best quality digital Galvotech scan head

Best quality digital Galvotech scan head

Come with newest digital type scan head with double red dots build in more easy to get focus;Failed warning light ensure machine running correctly.

UV Laser Source:JPT/HuaRay/Inngu 3W 5W 10W

UV Laser Source:JPT/HuaRay/Inngu 3W 5W 10W

With high beam qualitythe ultra-small focusing spot of 355nm ultraviolet light and processing heat affected zone

Genuine BJJCZ card

Genuine BJJCZ card

Software: EZCAD, control system WIN7, WIN8, WIN10 are ok

Rotary Device

Rotary Device

Widely used for cylindrical objects, arc-shaped markings, easy to operate. With a rotating card slot on the headeasy installflexible adjustment.

Parámetros técnicos

Laser source power

3W/5W/10W

Laser wavelength

355nm

Laser pulse width

3W<15ns@30khz, 5W<15ns@40khz, 10W<18ns@60khz

Laser frequency

20khz~150khz

Laser beam quality

1.2

Marking area

100x100mm, 150x150mm, 175X175mm, 200x200mm

Marking character

0.1 x 0.1 mm

Support computer

XP, WIN7, WIN8, WIN10

Control software

EZCAD

Control system

BJJCZ

Unit power

≤900W

Power supply

AC110V 60HZ or AC220V 50HZ

Cooling mode

Air cooling

Room temperature

-15 ~ 50 ℃

Gross weight

60kgs

Packing size

78x40x80cm


Industria de aplicaciones

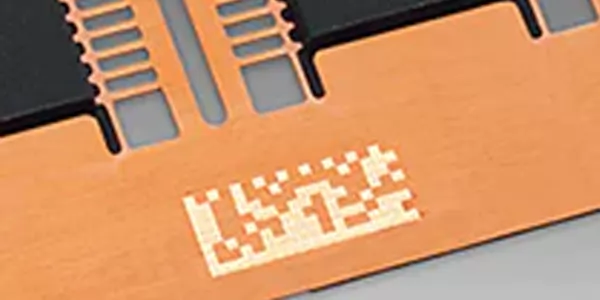

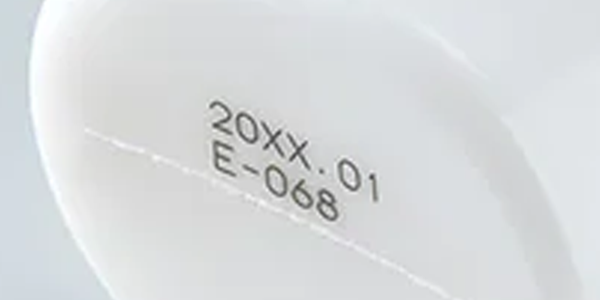

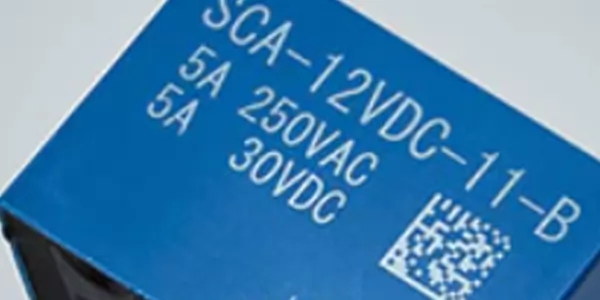

UV laser marking machine has been used in the high-end market of ultra-fine processing, marking the surface of iPhonecosmetics, medicine, food packaging; LCD liquid crystal glass, glass surface metal surface coating, plastic buttons, electronic components, gifts, communication equipment, Building materials and other fields.


MINI UV Laser Marking Machine

MINI UV Laser Marking Machine

MINI UV Laser Marking Machine
