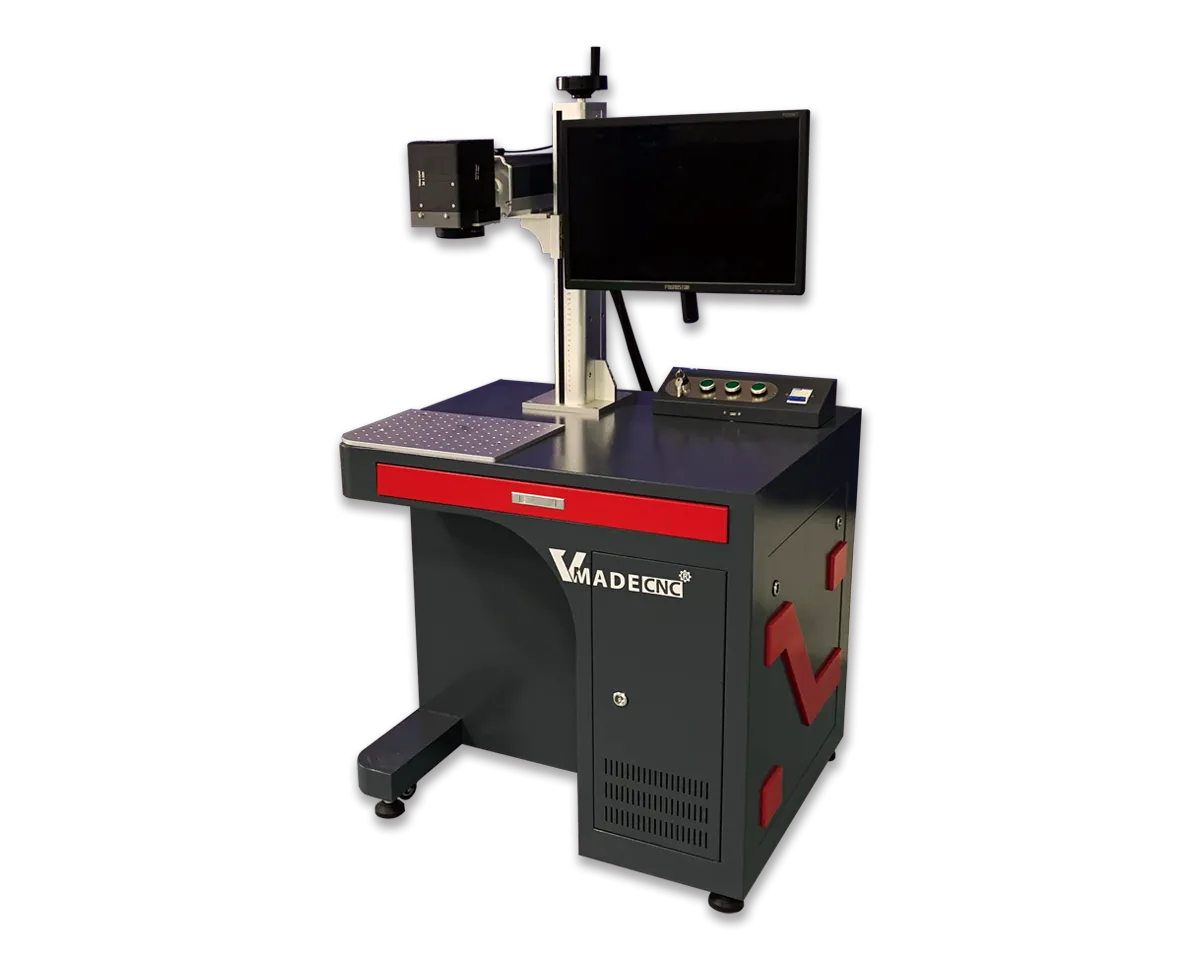

Desktop MOPA Laser Marking Machine

Serie de fibra

Desktop MOPA Laser Marking Machine

Consultar Ahora
Inicio / Productos / Máquina de marcado láser / Serie de fibra / Desktop MOPA Laser Marking Machine

1.High Stability: international/Domestic first class brand accessories, product quality highly stable

2.Low Cost: photoelectric conversion rate as high as 90% , power consumption as low as 500W

3.High efficiency: good facula quality, high monopulse ability, processing efficiency and precision greatly improved

4.Easy to use: easy to use marking interface, easy to use

5.Customizable: A variety of models to choose from appearance, highly customized.

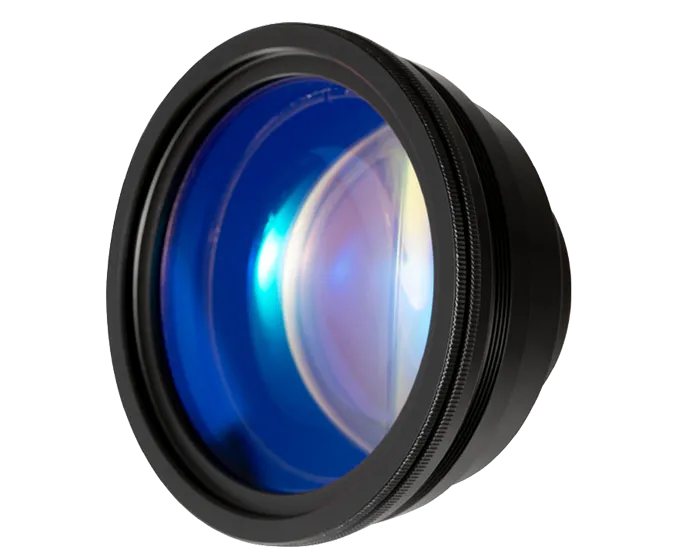

F-theta-lens

F-theta-lens

High quality wavelength tech optical lens, we have optional size:75*75mm, 110*110mm, 150*150mm, 175*175mm, 200*200mm, 250*250mm, 300*300mm etc(optional, but prices vary)you can choosse one suitable size according to your needs.

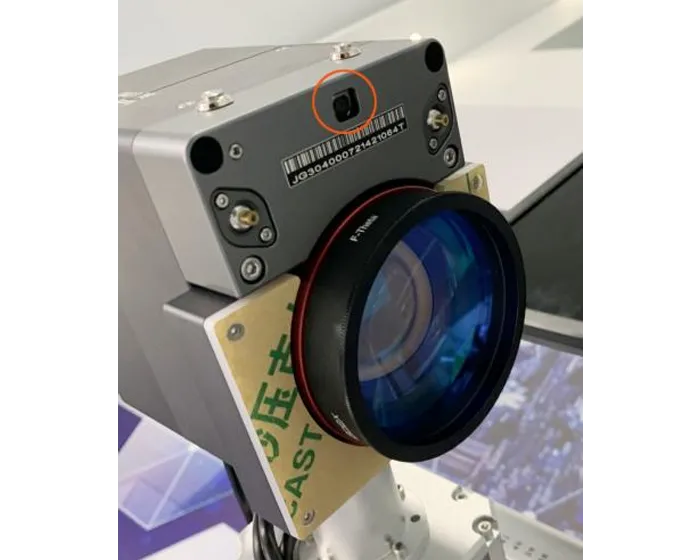

Cyclops camera position scan

Cyclops camera position scan

With Cyclops camera positioning high-speed scan head, it is more convenient to find the marking position of the material.

Within the correction range, where it can be drawn, it will be marked.

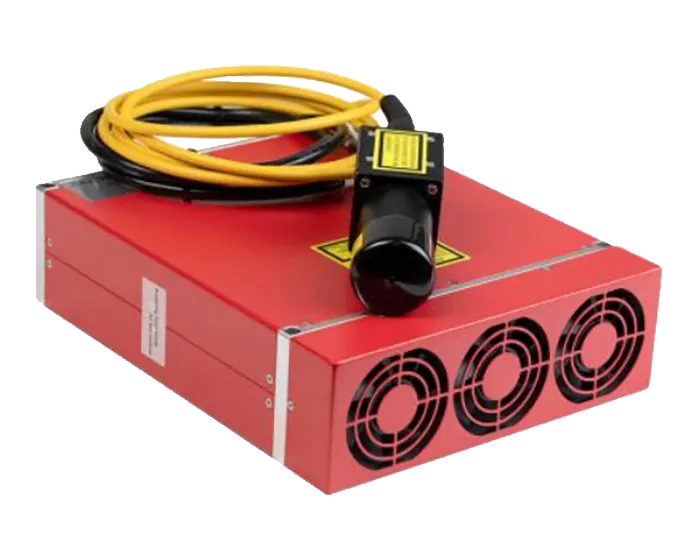

JPT Laser Source

JPT Laser Source

JPT M7 series has perfect laser characteristics and good pulse shape control ability. Compared with Q-switched fiber lasers, the JPT series lasers have more flexibility, can achieve lower and higher frequencies, and have a smaller opening delay.

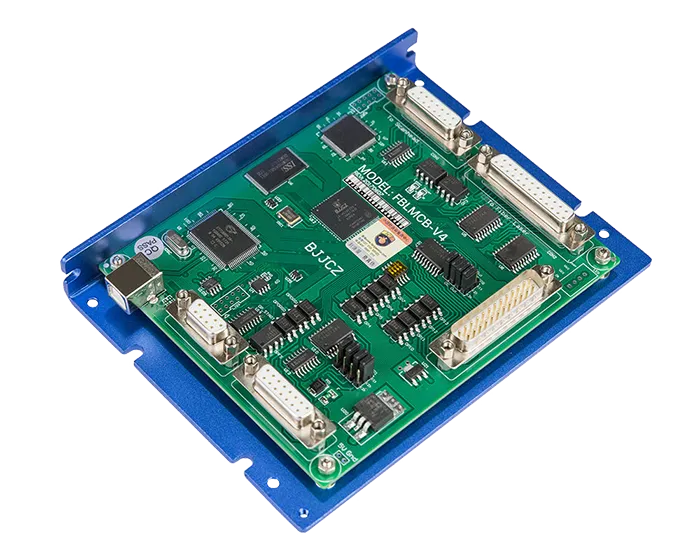

Genuine BJJCZ card

Genuine BJJCZ card

Software: EZCAD, control system WIN7, WIN8, WIN10 are ok

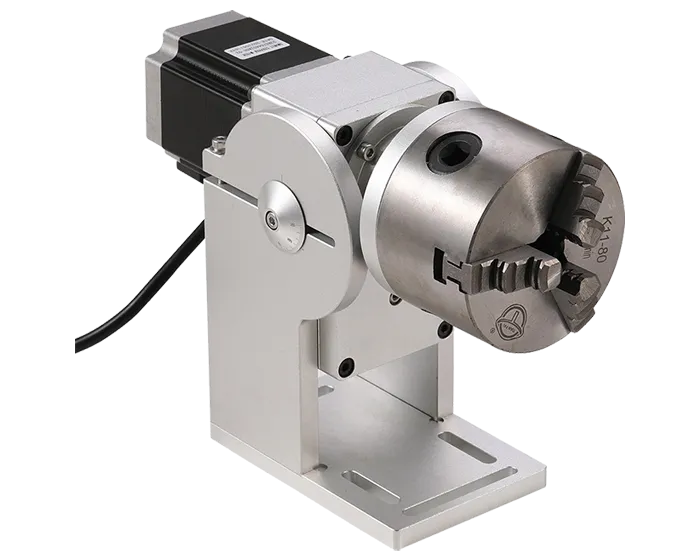

Rotary Device

Rotary Device

Widely used for cylindrical objects, arc-shaped markings, easy to operate. With a rotating card slot on the headeasy installflexible adjustment.

Parámetros técnicos

ModelVLF-60WVLF--100WVLF-120W
Delivery cable length2m3m
Beam Quality M2<1.8
Maximum Pulse Energy1.5MJ
Main board and control softwareGenuine EZCAD (BJJCZ) which supports XP Win7 /8/10 32 and 64bits
Wavelength1064nm
Max positioning speed8000mm/s
Marking Area70×70/110×110/150×150/175×175/ 200×200/300×300/400×400/(optional)
Min. linear width0.001mm
Min. Character size0.2mm
Full power Frequency range(KHZ)40~2000khz67~2000khz80-2000khz
Frequency adjustable range1~2000 KHZ
Pulse Duration10~350ns
Out beam diameter6±0.5mm
Supply voltageAC 110/220V±10%, 50/60Hz
Anti-reflection protectionyes
PolarizationRandom
Power cable styleAccording to your request (Asian /European / American standard)
FocusDouble red dots positioning
Cooling wayAir cooling
Operation temperature0~40℃
Package dimension75*41*79cm
Package gross weight60kgs
CE CertificateApproved

Industria de aplicaciones

Suitable for Gold, Silver, Diamond, Sanitary Equipments, Foods Packing, Tobacco Label, Beer label, Drink Label, Medicine Packing, Medical Equipments, Glasses and Clock, Auto Parts, Plastic& Paper Materials, The Electron, Hardware which with high request for depth, smooth, accuracy such as horologe, Mould, bitmap marking etc.
