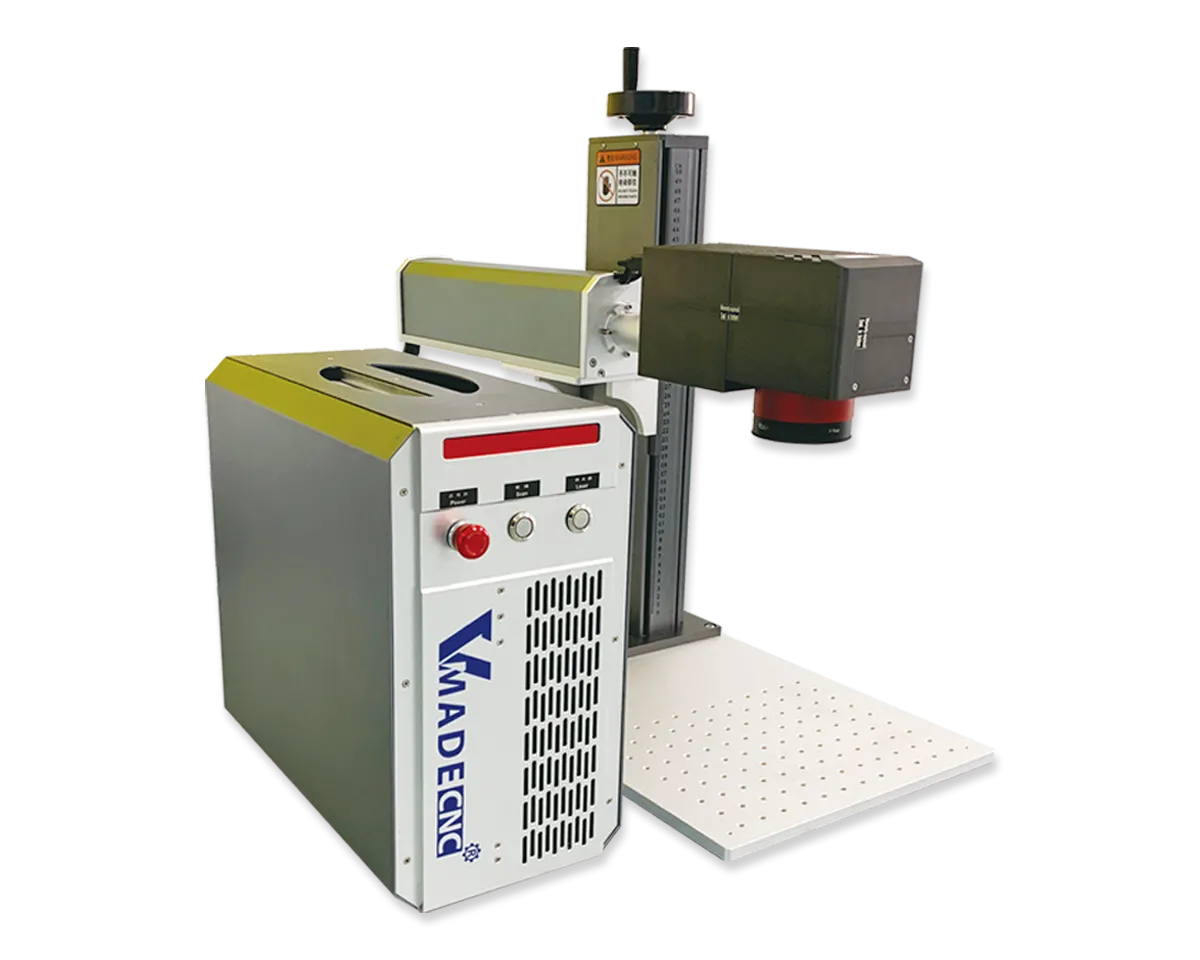

2.5D Fiber Laser Marking Machine

Serie de fibra

2.5D Fiber Laser Marking Machine

Consultar Ahora
Inicio / Productos / Máquina de marcado láser / Serie de fibra / 2.5D Fiber Laser Marking Machine

DetailedInformation

DetailedInformation

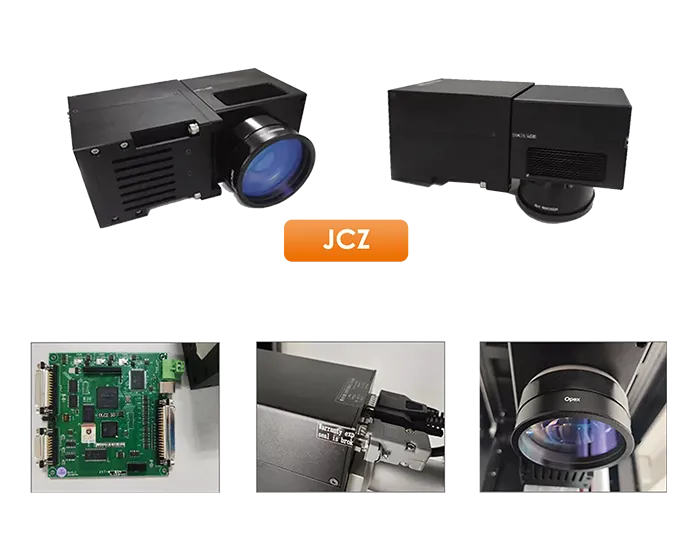

High speed motor, fast marking speed, precise focus control, ultra-low temperature drift, ultra long life

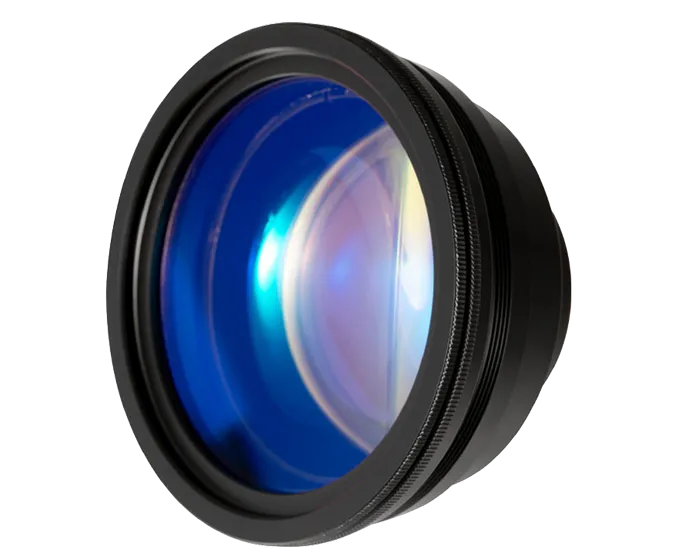

F-theta-lens

F-theta-lens

High quality wavelength tech optical lens, we have optional size:75*75mm, 110*110mm, 150*150mm, 175*175mm, 200*200mm, 250*250mm, 300*300mm etc(optional, but prices vary)you can choosse one suitable size according to your needs.

Motorized Z axis

Motorized Z axis

No longer use manual rotation, we use switches to control the lift

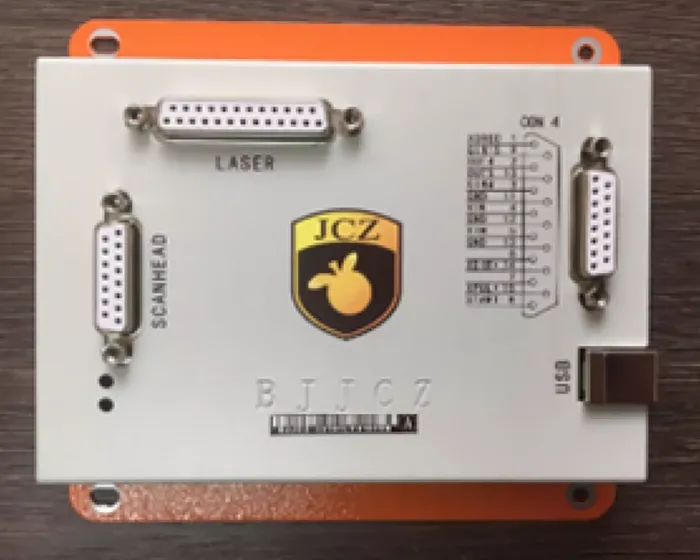

Genuine EZ CAD controller

Genuine EZ CAD controller

Each piece has a sole serial No. to check to avoid fake.

Newest version, more stable

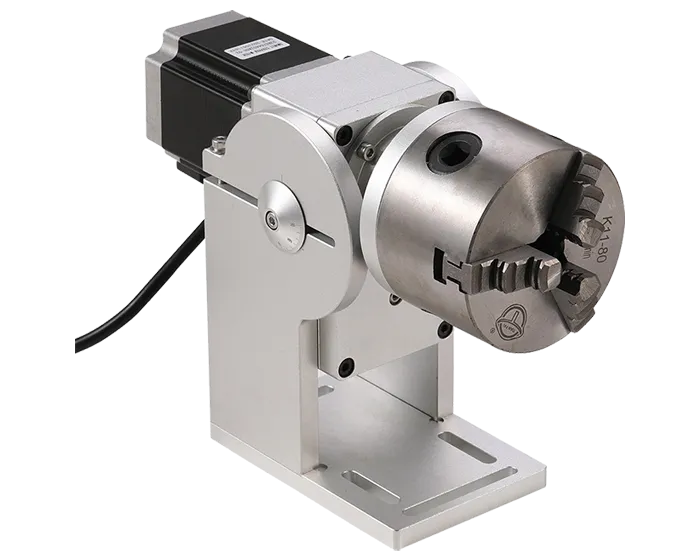

Rotary Device

Rotary Device

Widely used for cylindrical objects, arc-shaped markings, easy to operate. With a rotating card slot on the headeasy installflexible adjustment.

Parámetros técnicos

Product Name

2.5D Fiber Laser Marking Machine

Cooling Mode

Air cooling

Model No.

VLF-30

VLF -50

VLF-60

VLF-80

VLF-100

VLF-120

Max Marking Speed

7000mm/s

Laser Source

Raycus

JPT

IPG

Mininum Line Width

0.015mm

Power

30W/50W

60W/80W

100W /120W

Mininum Character

0.2mm

Laser Wavelength

1064nm

Pulse Frequency

30KHz - 100KHz(Raycus)

1KHz - 4000KHz (JPT)

Marking Area

70*70mm,

110*110mm,

150*150mm,

175*175mm,

200*200mm,

220*220mm,

300*300mm.

Operation Environment

Working temperature: 0°-40°.

Storage temperature: -10°-60°.

Humidity: 30% - 85%.

Power Supply

AC110V/220V+10%

50HZ or 60HZ

Control Card

EZCAD3 from JCZ

Operation System

Win XP / 7 / 8 / 10

(64 bits)

Lifespan

80,000-100,000 hours


Industria de aplicaciones

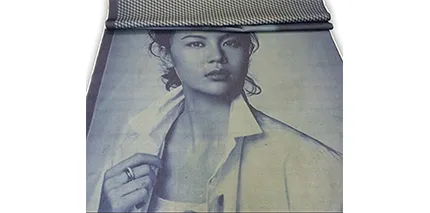

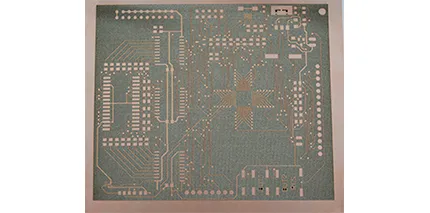

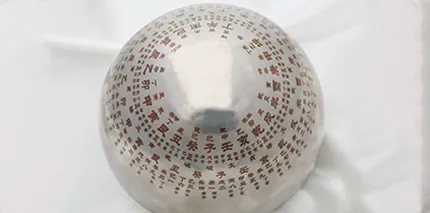

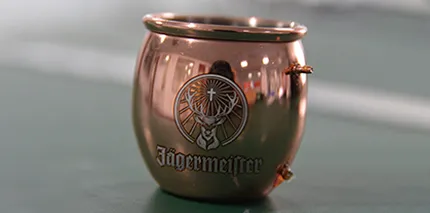

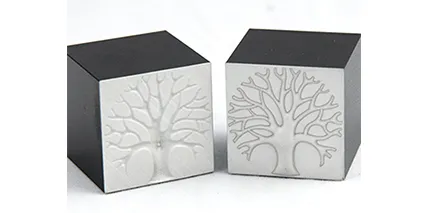

The machine can marking on all themetal materials and some of nonmetal materials.

2.5D Fiber Laser Marking Machine

2.5D Fiber Laser Marking Machine

2.5D Fiber Laser Marking Machine

2.5D Fiber Laser Marking Machine

2.5D Fiber Laser Marking Machine

2.5D Fiber Laser Marking Machine
