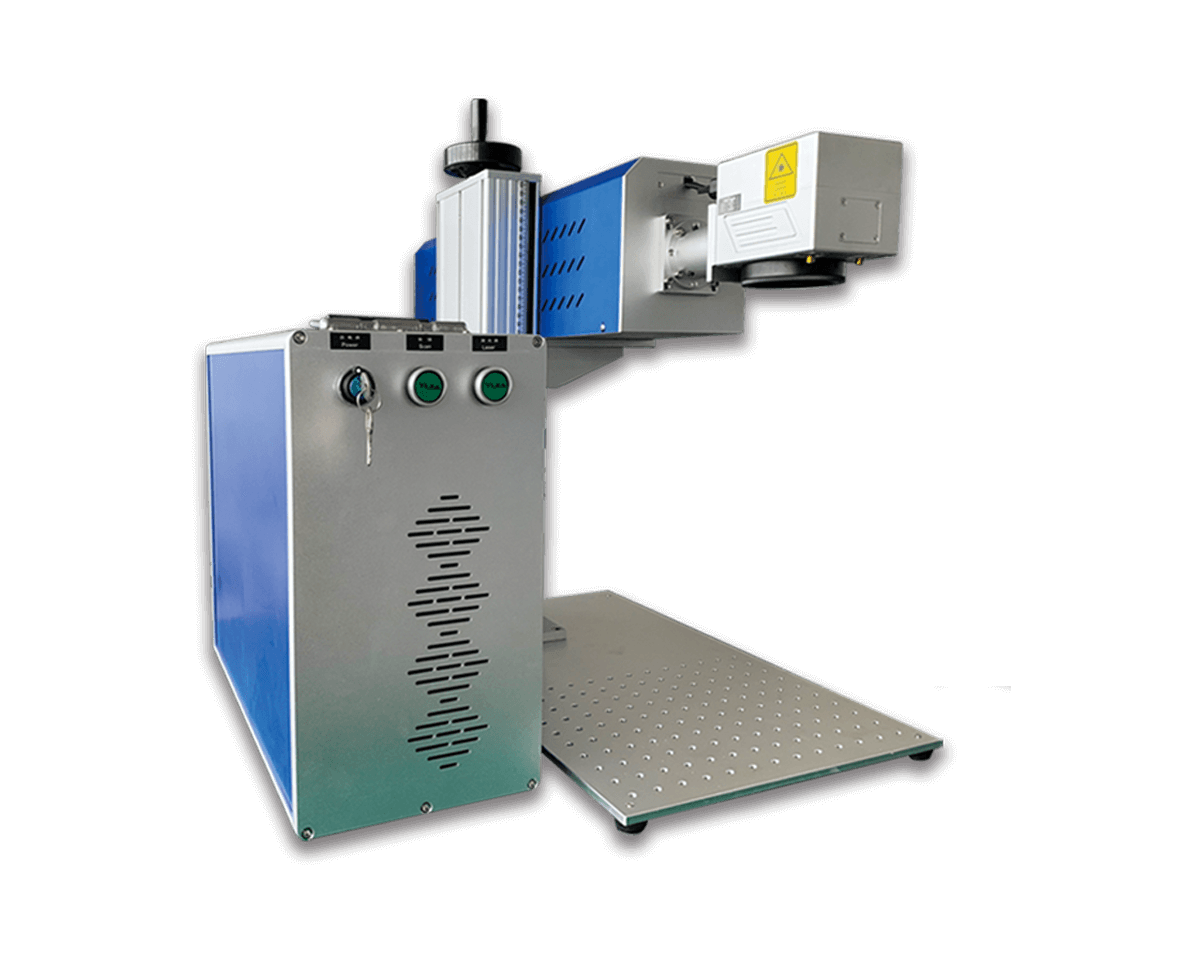

Portable CO2 Laser Marking Machine

Serie CO2

Portable CO2 Laser Marking Machine

Consultar Ahora
Inicio / Productos / Máquina de marcado láser / Serie CO2 / Portable CO2 Laser Marking Machine

The metal tube carbon dioxide laser tube has higher precision than glass tube, and the marking effect is fine.
The machine is maintenance-free and requires no consumables.
Small size, easy to transport.

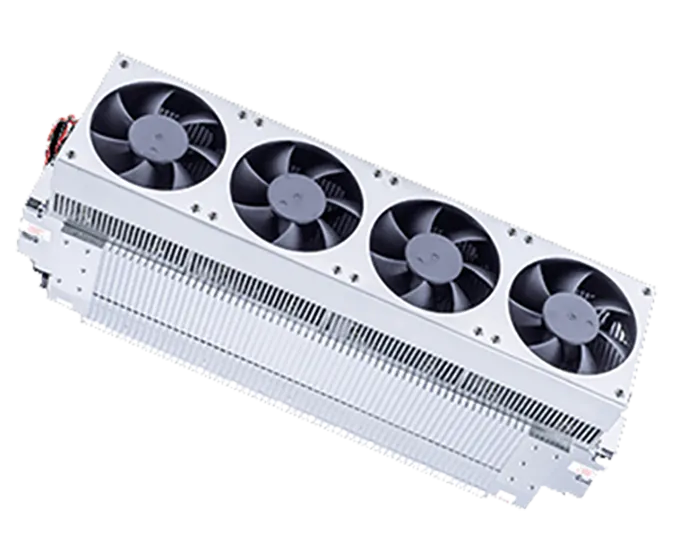

Laser Module

Laser Module

DAVI/ ACCESS/ COHERENT as your reference.

20w/ 30w/ 55w laser power as your requirement.

Stable operation, lifespan of more than 100, 00 hours.

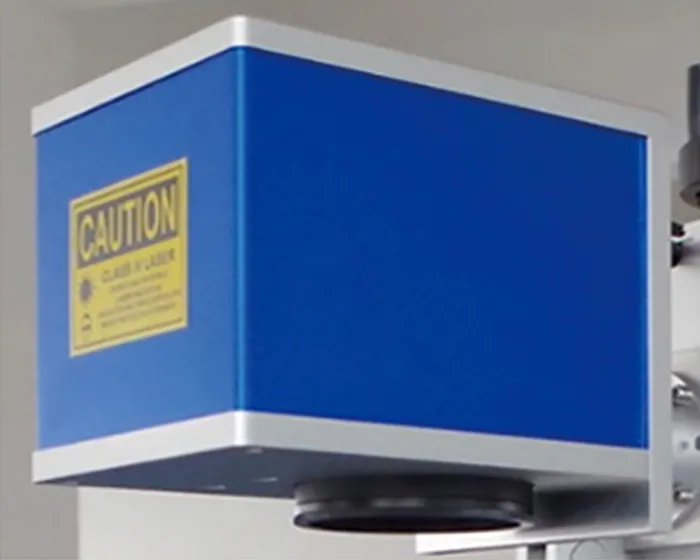

Galvo Scan Head

Galvo Scan Head

Newest digitagalvo scanner head

Aperturesize16mm

Linearity>99.90%

Repeatability<8urad

Longterm drift over 8 hours

<0.5urad

Control Program

Control Program

The newest Genuine version

BJJCZcontrol board with

EZCAD control program

which is compatible with

win7/win8/win1032 and 64 bits

F-theta-lens

F-theta-lens

High quality wavelength tech optical lens, we have optional size:75*75mm, 110*110mm, 150*150mm, 175*175mm, 200*200mm, 250*250mm, 300*300mm etc(optional, but prices vary)you can choosse one suitable size according to your needs.

Best quality digital Galvotech scan head

Best quality digital Galvotech scan head

Come with newest digital type scan head with double red dots build in more easy to get focus;Failed warning light ensure machine running correctly.

Parámetros técnicos

Machine TypeVLF-CO2-10W 30W 60W 100W
Laser Output Power10W 30w 60W 100W
Power stability(from cold start)guaranteed+/-5%
Laser beam qualityM2<1.2
Beam combination spot size2.5mm
Beam expanding spot size15mm
Reflection beam sopt size16mm
Wavelength10.60um
Control systemEZCAD work with win7/8/10
Focus methodDouble red dots
Cooling wayAir cooling
Working Area70*70mm-300*300mm
Linearity99.90%
long term drift over 8 hours<0.5urad
Repeated Accuracy<=8urad
Minimum Line Width0.015mm
Power Supply220V/50HZ or 110V /60HZ
Package size109*46*78cm
Gross weight90kgs


Industria de aplicaciones

Suitable for wood, paper, leather, cloth, plexiglass, epoxy, acrylic, unsaturated polyester resin and other non-metal materials.

Portable CO2 Laser Marking Machine

Portable CO2 Laser Marking Machine

Portable CO2 Laser Marking Machine
